Snaw-naw-as Sanitary Sewer System
Snaw-naw-as land near Nanoose Bay, BC
The Snaw-naw-as (Nanoose First Nation) had a major problem. The majority of the individual onsite septic system tile fields were failing. The raw sewage was breaking out of the ground and flowing to areas where children played, which caused a major health problem for the community.
This was also a serious environmental problem as their sewer ran through the ditches and creeks in their village to the foreshore of Nanoose Bay.
And it posed a cultural and economic problem because the beaches were contaminated and the traditional harvesting of clams on the beach was prohibited for health reasons.
Chatwin Engineering proceeded to provide the solution by designing and building a state of the art sanitary sewer collection system, major sewer pumping station, sanitary sewer treatment facility, and a 2.2km outfall.
The next challenge we encountered was public concern about pollution in Nanoose Bay from the effluent outfall. The quality of the sanitary sewer from the nearest Regional District of Nanaimo Sanitary Sewer Outfall was BOD-45 and TSS-45. We promised to deliver a BOD-10 and TSS-10. After the project was complete the monitoring showed consistent results of BOD-5 and TSS-5, far exceeding the requirements and satisfying the concerns of the community.
People’s concerns about odor were addressed with a multi-barrier approach: locating the plant downwind of development, selecting a treatment process that had minimum odor, and totally enclosing the facility in a building and running the air through a scrubber to eliminate odor. Since the plant was built, there have been no odor complaints.
Today the sanitary sewer system at Snaw-naw-as is working flawless, producing the highest quality effluent on the coast. The children of the village play in a safe and healthy environment and the people of Snaw-naw-as once again enjoy the commercial shellfish harvest from their beaches.
An added environmental bonus for the community

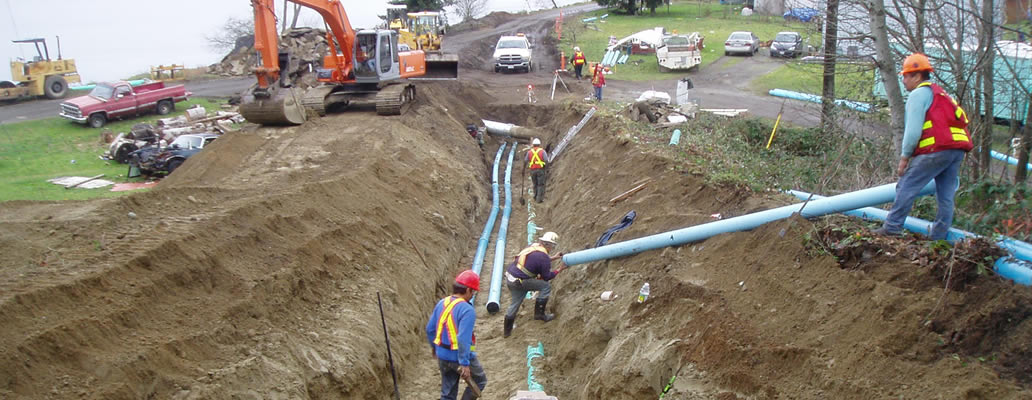

We were required to construct the outfall line along the beach, which was suffering from severe erosion caused by retaining walls on adjacent ocean properties. To protect the foreshore we developed one of the first Greenshore Projects in British Columbia. We replaced the existing riprap that damaged sensitive inter-tidal habitats with a gravity sloping beach filled with round rocks that gently rolled up and down the beach dissipating the energy of the waves. See how our Environmental Division (link) contributed to this project.
